Lab 003: Jenkins Create Users

Requirements​

The Nautilus team is planning to use Jenkins for some of their CI/CD pipelines. DevOps team has just installed a fresh Jenkins server and they are configuring it further to be available for use.

Click on the Jenkins button on the top bar to access the Jenkins UI. Login using username admin and password Adm!n321.

It has only a sample job for now. A new developer has joined the Nautilus application development team and they want this user to be added to the Jenkins server as per the details mentioned below:

  1. Create a jenkins user named javed with LQfKeWWxWD password, their full name should be Javed (it is case sensitive).

  2. Using Project-based Matrix Authorization Strategy assign overall read permission to javed user.

  3. Remember to remove all permissions for Anonymous users (if given) and make sure admin user has overall Administer permissions.

  4. There is one existing job, make sure javed only has read permissions to that job (we are not worried about other permissions like Agent, SCM, etc.).

Note:

  1. You might need to install some plugins and restart Jenkins service. So, we recommend clicking on Restart Jenkins when installation is complete and no jobs are running on plugin installation/update page i.e update centre. Also, in case Jenkins UI gets stuck when Jenkins service restarts in the back end, please make sure to refresh the UI page.

  2. Do not immediately click on Finish button if you have restarted the Jenkins service, please wait for Jenkins login page to come back before finishing your task.

  3. For these kind of scenarios that required changes to be done from a web UI, please take screenshots of your work so that you can share the same with us for review purpose (in case your task is marked incomplete or failed). You may also consider using a screen recording software such as loom.com to record and share your work.

Note

This page preserves the original requirements and documents one complete workflow to create a Jenkins user and configure matrix-based authorization.

Prerequisites​

  • Jenkins server is installed and running.
  • Admin user credentials are available (admin / Adm!n321).
  • At least one job exists in Jenkins.

Steps​

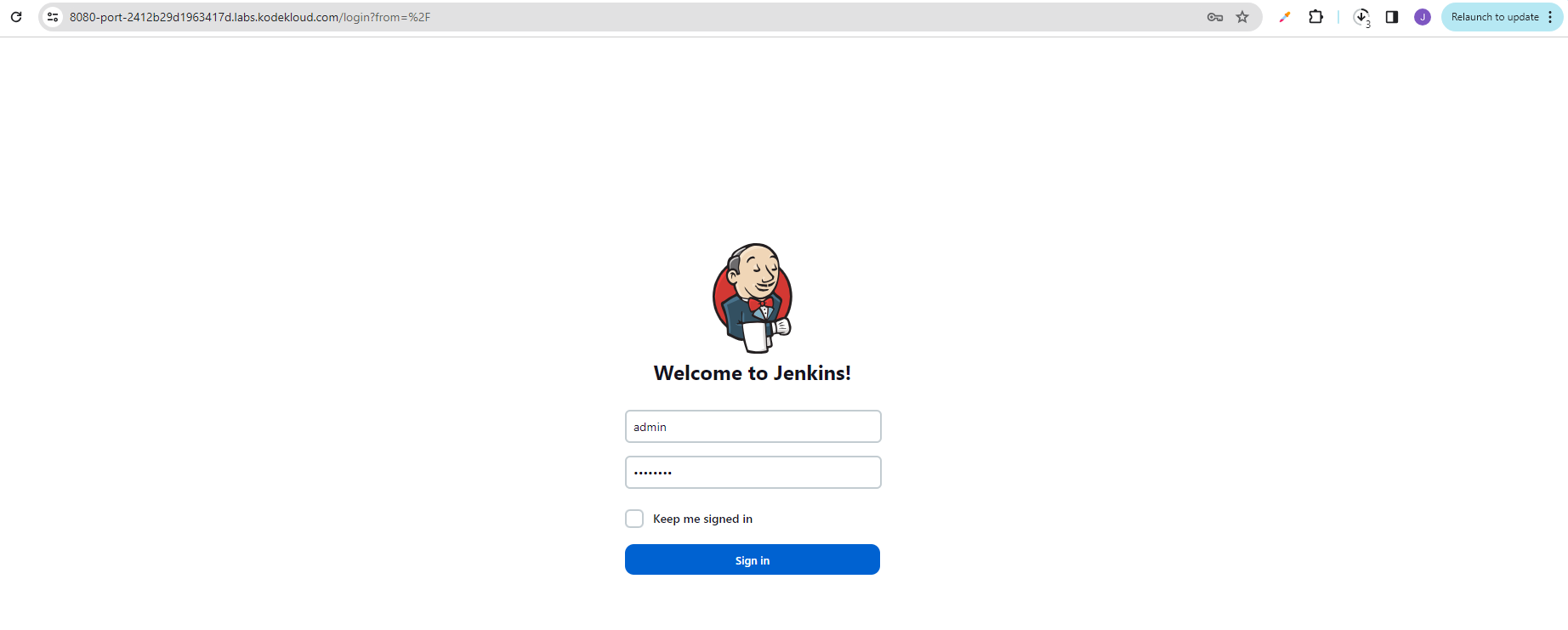

Click the Jenkins button and in the new tab, sign-in to Jenkins.

AutomationExpert

AutomationExpert

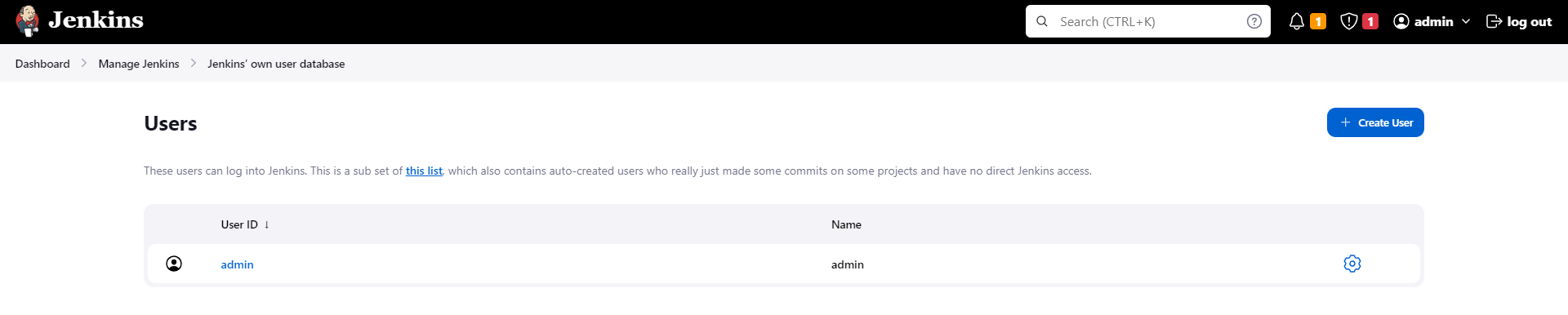

Go to Manage Jenkins > Manage Users > Create User

AutomationExpert

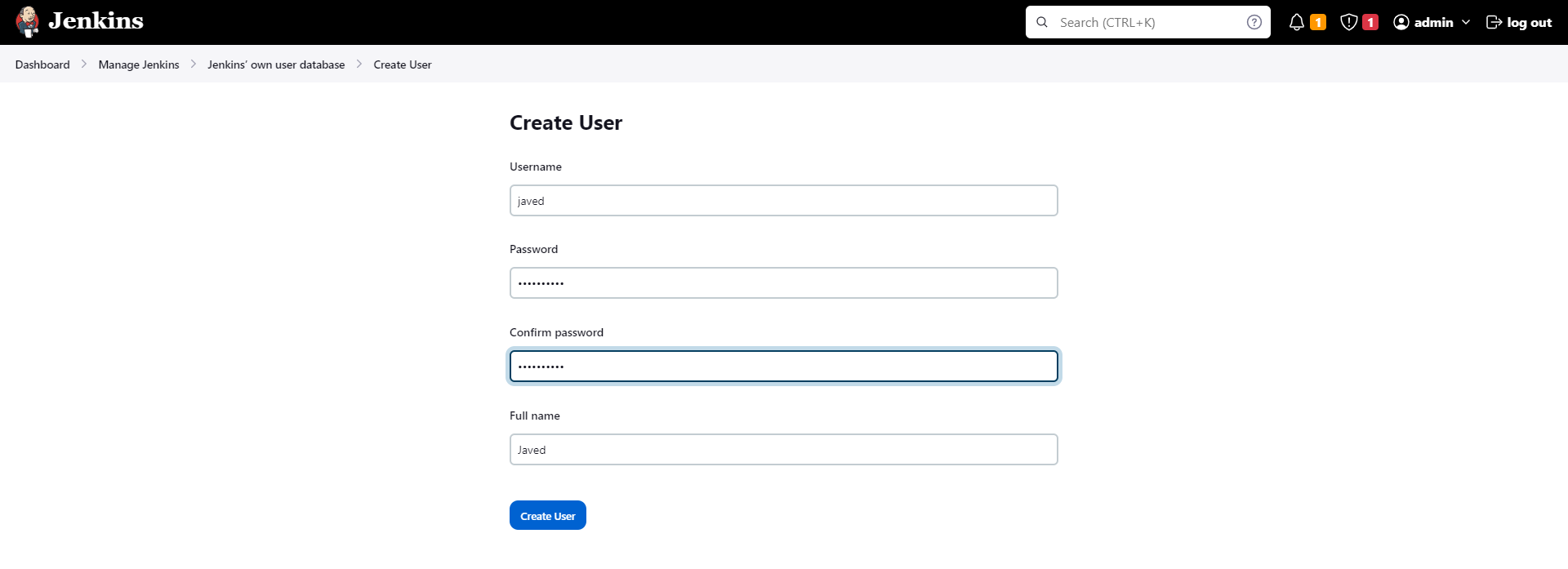

Provide user details as per instruction > Create User

AutomationExpert

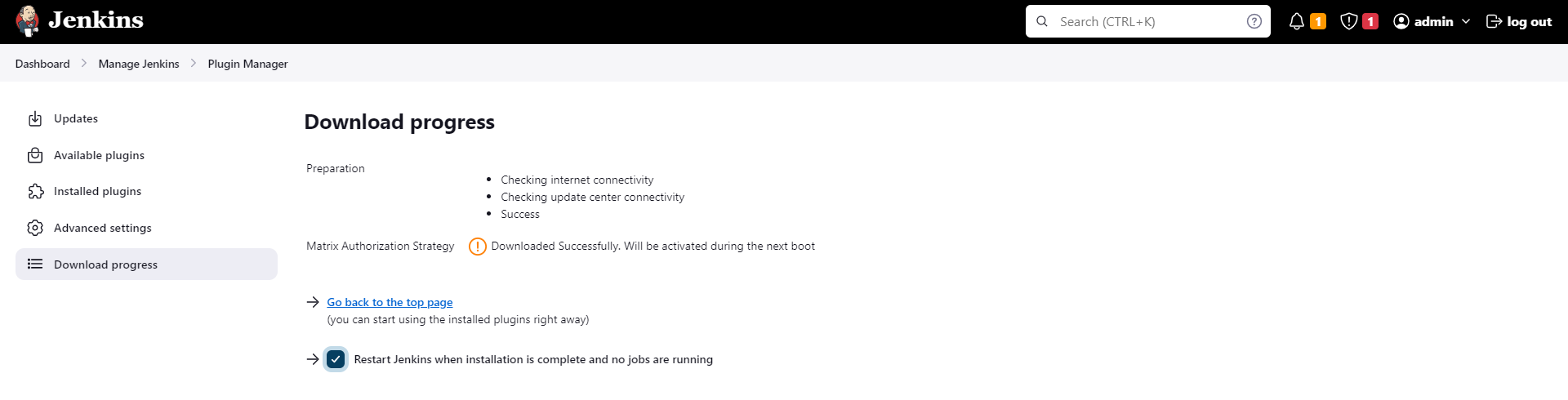

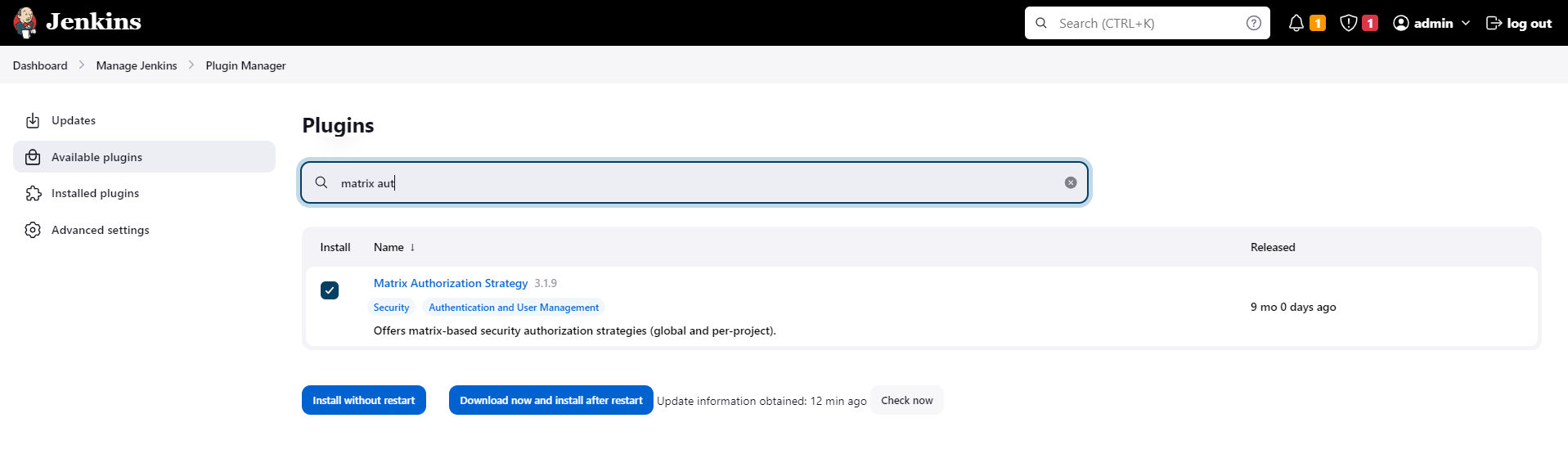

Go to Manage Jenkins > Manage Plugins Install Matrix Authorization Strategy plugin if its not yet installed. Make sure to click Download now and install after restart. > Restart Jenkins when installation is complete

AutomationExpert

AutomationExpert

After restart, login again.

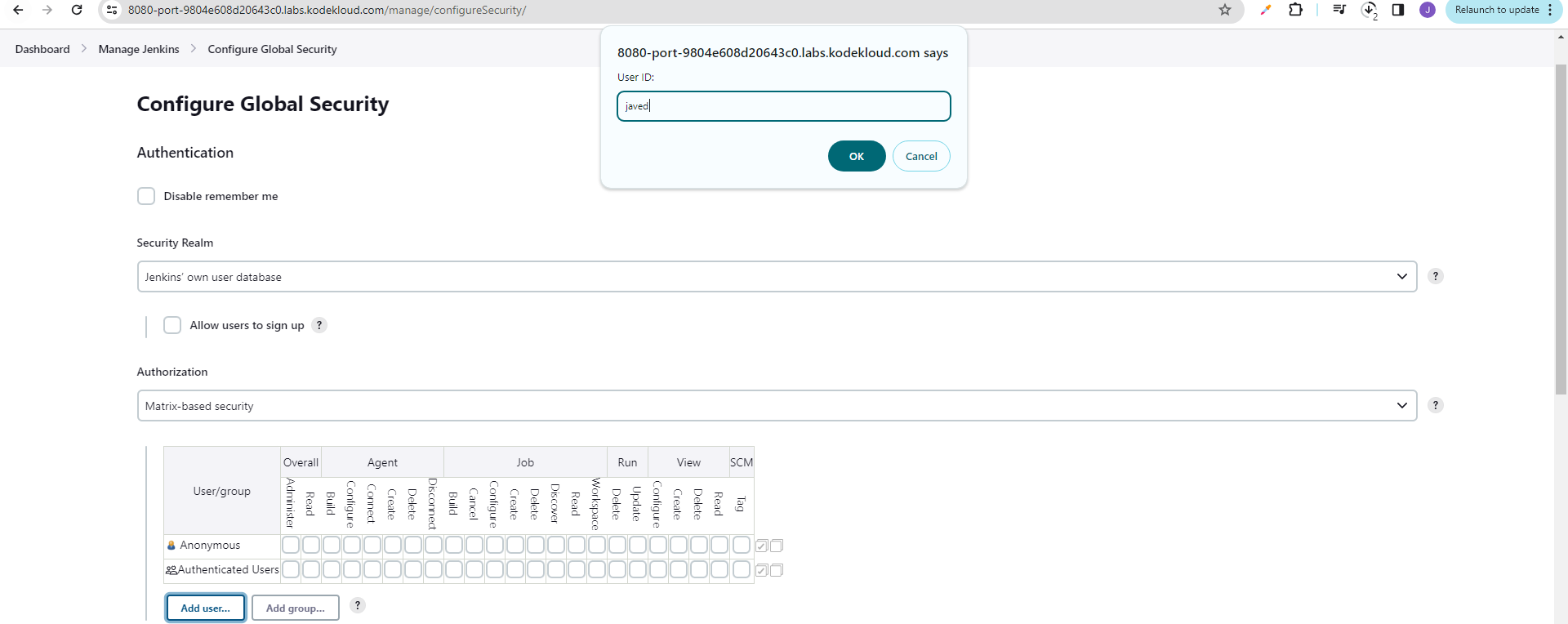

Go to Manage Jenkins > Configure Global Security > Authorization Select Matrix-based security on the drop-down bar > Add user > Enter new user > OK

AutomationExpert

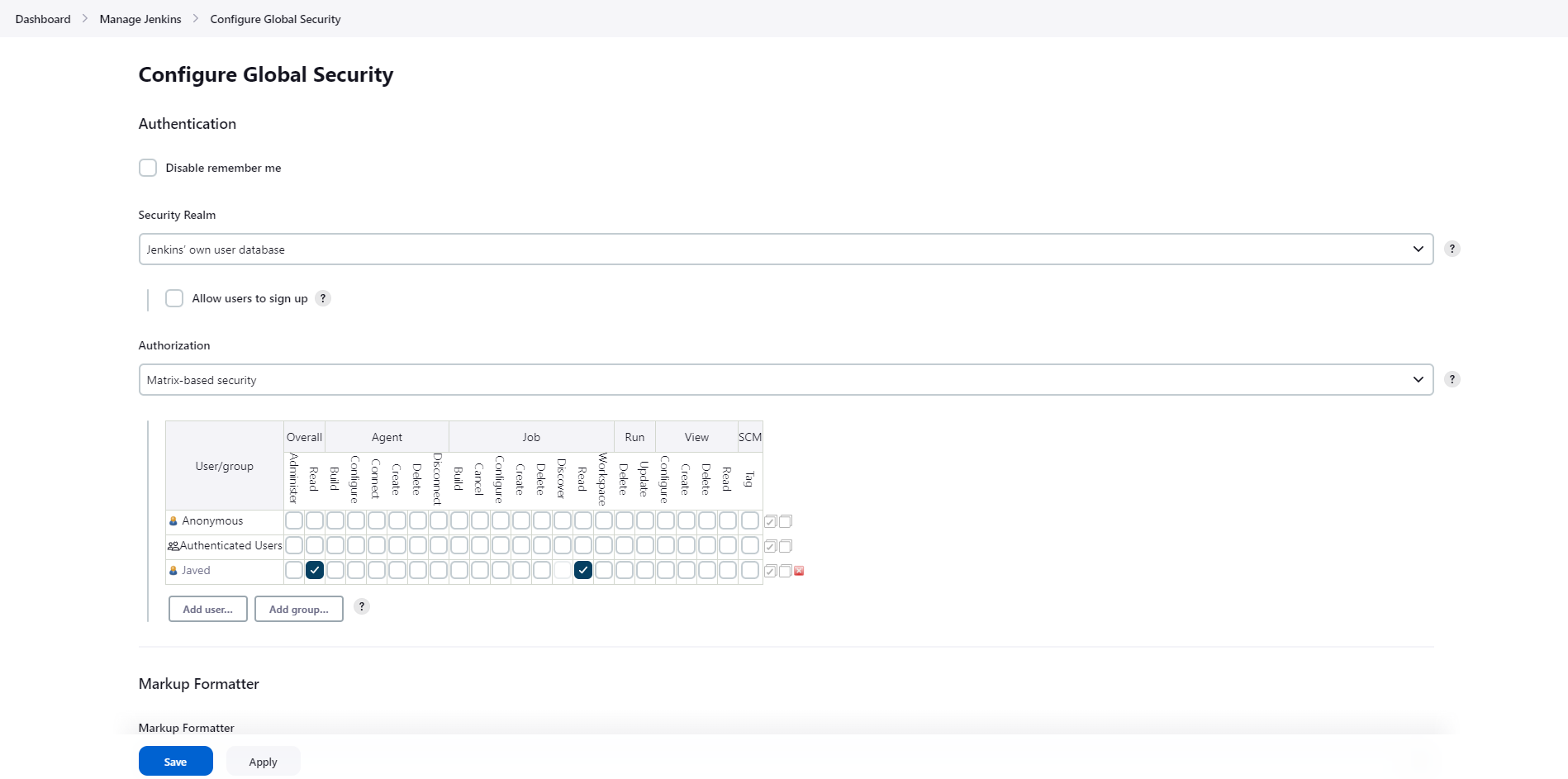

Assign Read permissions > Save

AutomationExpert

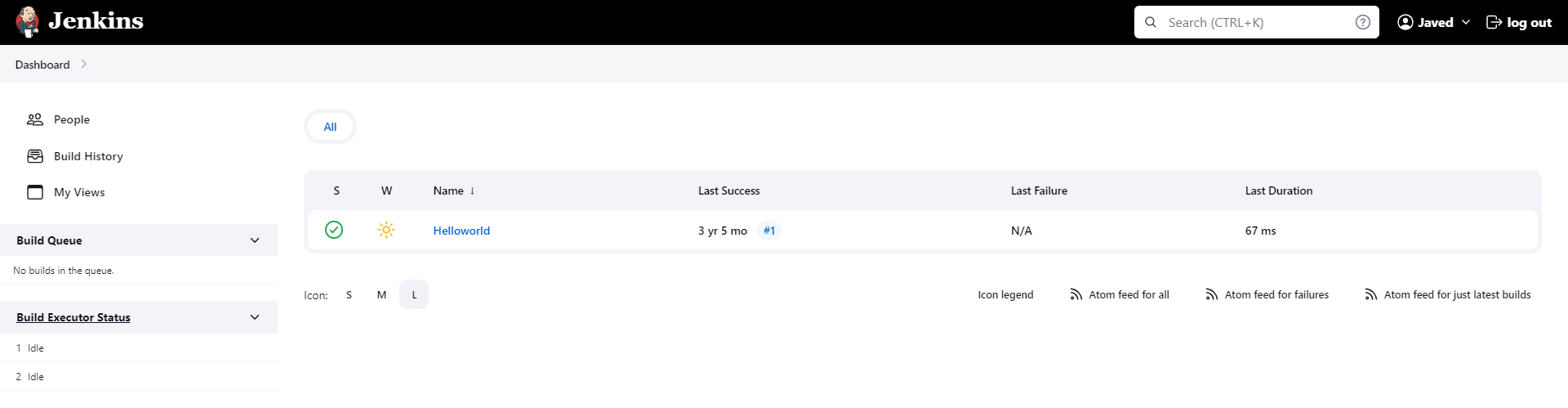

Logout and sign-in as the newly created user. The new user should be able to see the existing job.

AutomationExpert

Verification​

  • Confirm user javed exists under Manage Jenkins > Manage Users.
  • Confirm Matrix Authorization Strategy plugin is installed.
  • Confirm javed user has Read permission in the global matrix.
  • Confirm javed can log in successfully.
  • Confirm javed can view the existing job with read-only access.
